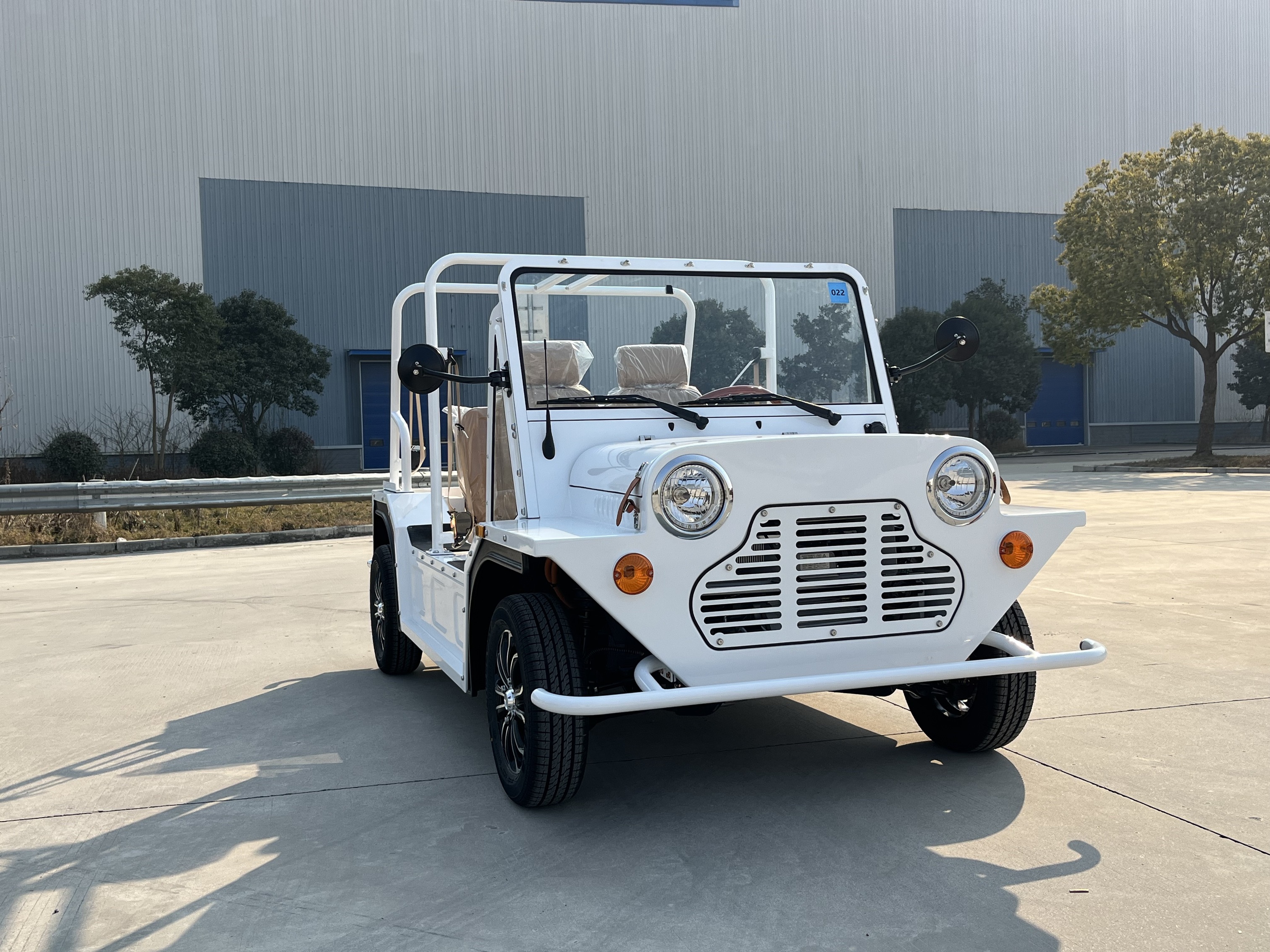

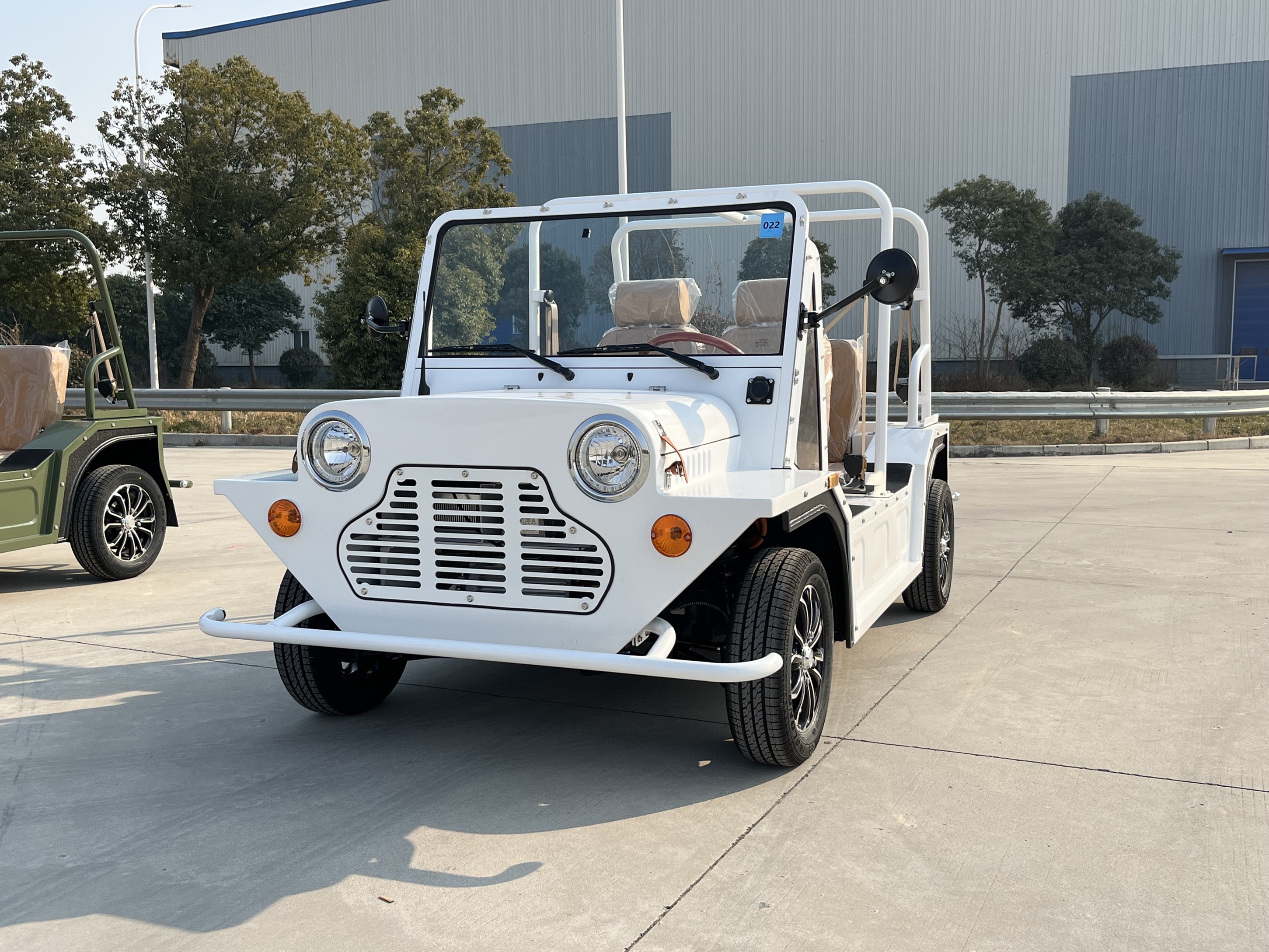

Lithium battery mini moke

Dimensions (LxWxH)

3290*1530*1500 mm

Wheelbase

2120 mm

Wheel track front/rear

1280mm/1280mm

Ground clearance

180mm

Max climbing ability

30°

Curb weight

430Kg

Full load

960Kg

Range

150Kms

Seats

4

Electric motor

Motor model: GLMI10A1

Motor power (rated/peak): 10 KW/22 KW

Motor rpm (rated/max): 3500/7000 r/min

Motor rated voltage: 96 V

Insulation class: H

Protection class: IP65

Motor controller: GLCI6008A2

Battery

Brand: CATL (battery supplier of Tesla)

Rated capacity: 166AH

Battery pack rated voltage: 96V

Total energy: 16.5 KWH

Max continuous charge current: 120A

Max continuous discharge current: 145.6A

Peak discharge current: 250A (Protected to 250 A)

Standard voltage: 103.6V

MAX voltage: 116V

Battery pack weight: 131.2kgs

Battery cell model: 18650

Battery core type: Ternary lithium battery

Battery working temperature: -20°------60 °

Battery pack cooling method: Natural cooling

Excess voltage protection: 4.15V

Under voltage protection: 2.8V

System self-discharge rate: Keep 95% at 25 days, 25°C

IP rated: IP67

Max.speed

70 (Km/h)

Drive type

Front/Front

Chassis and other parameters

Steering system

Gear rack mechanical steering

Brake system

Front disc/ Rear disc

Handbrake

Electronic handbrake

Dashboard

Aluminum dashboard

Suspension system (F/R)

(Front)double wishbone independent suspension, (rear) after trailing arm type independent suspension

Gearbox type

Two-speed transmission, Transmission ratio:

6.7:1 (low speed);

12:1 (high speed).

Tire

155/65R13

Body color

Red, Yellow, Black, Blue, White, Green
